Paint Catalysts for Industrial Coatings: How to Select & Use Acid Catalysts

Why Your Coating Is Curing Slower Than It Should

A coating that takes too long to cure isn't just an inconvenience — it's a production bottleneck. In industrial settings, every extra minute in the oven or on the drying rack adds cost. Paint catalysts exist precisely to fix this. By lowering the activation energy required for crosslinking, they allow the same cure quality to be achieved at lower temperatures, in shorter time windows, or both.

The mechanism is straightforward: catalysts don't get consumed in the reaction. They accelerate it, then step aside. This makes them one of the most cost-efficient tools in a formulator's toolkit — small dosages (typically 0.5–2% by weight) deliver outsized gains in throughput and film performance.

Acid Catalysts: The Standard for Amino and Hydroxyl Resin Systems

For coatings based on hydroxyl-functional resins crosslinked with amino resins (melamine, urea formaldehyde), acidic conditions are required to drive the reaction. This is where acid catalysts — primarily sulfonic acid derivatives — dominate the market.

The most common types include para-toluenesulfonic acid (p-TSA), dinonylnaphthalene sulfonic acid (DNNSA), and blocked variants that remain dormant until heat triggers the release of the active acid. The choice between them depends on your amino crosslinker type and whether you need a one-component (1K) or two-component (2K) system.

Blocked acid catalysts are particularly useful in 1K formulations, where storage stability is critical. The blocking agent — typically an amine — separates from the acid only under elevated temperature, preventing premature gelation during storage while enabling rapid cure on the line.

What Paint Catalysts Actually Do to Your Film

Beyond cure speed, a catalyst shapes nearly every performance attribute of the final film. Higher crosslink density — the direct result of a well-catalyzed reaction — translates into harder surfaces, better solvent resistance, and improved adhesion. At the same time, catalyst choice affects gloss, yellowing tendency, and pot life.

For example, amine-blocked acid catalysts can introduce a yellowing risk at high cure temperatures, which matters in white or light-coloured coatings. Moisture is another variable: catalyst deactivation due to humidity during application can produce unpredictable results. These trade-offs make catalyst selection as much an application decision as a chemistry one.

The practical impact on production is significant. Reducing cure temperature by even 20–30°C can meaningfully cut energy consumption in continuous coil coating lines, where ovens run continuously at scale. Shorter cure windows increase line speed. Both outcomes reduce cost per unit — which is why industrial formulators treat catalyst selection as a profit lever, not just a technical detail.

Three Acid Catalysts Designed for Industrial Baking Systems

Haisong's catalyst line addresses the core requirements of coil coatings, industrial baking paints, and waterborne baking systems. All three products work by reducing reaction temperature and increasing crosslink density, with each variant tailored to specific resin compatibility and performance priorities.

Catalyst 2025 suits formulators who prioritize shelf-life stability and wide resin compatibility — a reliable choice for general industrial baking paint systems. Catalyst 2051, with its higher non-volatile content (50%), offers stronger active delivery per unit weight and is particularly suited to applications where water resistance is a key performance requirement. Catalyst 2030 bridges both priorities, offering improved water resistance without sacrificing the storage stability that 1K systems demand.

All three are compatible with solvent-based thermosetting acrylic resins and work effectively in waterborne baking paint systems, making them versatile additions to a coatings formulation lab.

How to Choose: Matching Catalyst to System

Three questions narrow the selection quickly. First: what is your amino crosslinker? Strong sulfonic acids suit fully alkylated monomeric melamine; weaker or blocked acids handle high imino and polymeric systems. Second: is the system 1K or 2K? Blocked catalysts are the default for 1K stability. Third: what is your target cure temperature and line speed? Higher-activity catalysts allow lower oven temperatures or faster throughput.

Dosage fine-tuning matters too. Starting at 0.5% and titrating upward gives formulators control over pot life (in 2K systems) and crosslink density without overshooting into brittleness or discoloration. Testing hardness, gloss, and chemical resistance at each increment provides a clear picture before committing to a production formula.

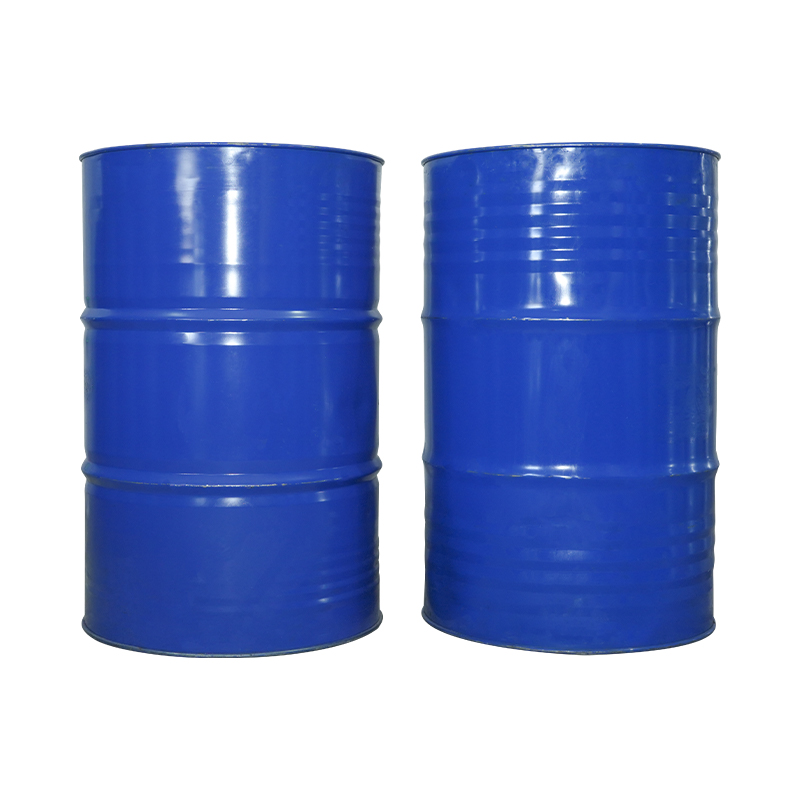

For coil coating lines where alkyd resins for industrial coatings are part of the system, catalyst choice also influences the balance between cure speed and film flexibility — a pairing worth evaluating empirically with actual line conditions rather than relying solely on lab data.

A Note on Sustainability

Lower cure temperatures mean lower energy consumption. Faster cure cycles mean shorter oven exposure times. Both directly reduce the carbon footprint of coating operations. As regulatory pressure on VOC emissions and energy use increases across the EU, North America, and China, paint catalysts are becoming a practical tool for environmental compliance — not just a performance additive. Waterborne systems, which are inherently lower in solvent content, also benefit from catalysts that enable full crosslinking despite the challenges water introduces to the curing environment.

More information on how functional accelerators complement catalyst systems in complex formulations is available for formulators working with multi-additive approaches.
